使用box-shadow、border-radius和transition制作不同的图片风格

日期:12-12    来源:中国设计秀    作者:cnwebshow整理

网页制作cnwebshow文章简介:一些上流的css3图片样式.
NjU中国设计秀

译自:css3 Image StylesNjU中国设计秀
中文:css3图片样式NjU中国设计秀
请尊重版权,转载请注明来源,多谢~~NjU中国设计秀

 NjU中国设计秀


直接在图片元素上直接应用css3 inset box-shadow 或 border-radius时,浏览器并不能完美的渲染它们。不过,如果把这个图片用作背景图,你就可以可以给它添加任何样式了,浏览器也会很好地渲染。Darcy Clarke和我做了一个简单的教程,讲解如何使用jQuery来动态地制作完美的圆角图片。今天我将重温这个主题然后向你展示使用background-image的方法可以实现多少效果。我将向你展示如何使用box-shadow、border-radius 和 transition 来创作不同的图片风格。NjU中国设计秀

 NjU中国设计秀

先看下demoNjU中国设计秀

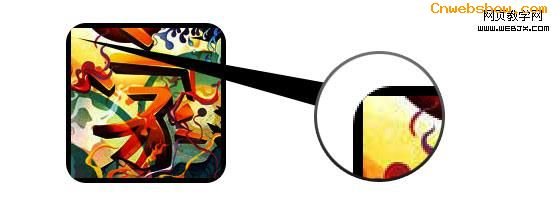

问题 (见 demo)NjU中国设计秀

看一下demo,请注意在第一行的图片中使用了border-radius和inset box-shadow。Firefox会直接在图片元素上渲染border-radius,但不会渲染inset box-shadow。chrome/safari则两者都不渲染。NjU中国设计秀

border-radius problemNjU中国设计秀

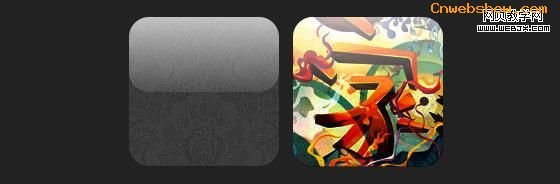

解决方案NjU中国设计秀

要让 border-radius 和 inset box-shadow 正常工作,解决方案就是将实际图片变作background-image.NjU中国设计秀

codeNjU中国设计秀

动态方法NjU中国设计秀

要想动态实现,可以简单的使用jQuery为每个图片元素外面包一个背景图片。下面的jQuery代码会将所有图片外面包一个span标签然后将图片用作其背景图片(jQuery代码由Darcy Clarke编写)。NjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
<script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.5/jquery.min.js"></script>
<script type="text/javascript">
$(document).ready(function(){

	$("img").load(function() {
		$(this).wrap(function(){
			return '<span class="image-wrap ' + $(this).attr('class') + '"
				style="position:relative; display:inline-block; background:url(' + $(this).attr('src') + ') no-repeat center center; width: ' + $(this).width() + 'px; height: ' + $(this).height() + 'px;" />';
		});
		$(this).css("opacity","0");
	});
});
</script>

输出NjU中国设计秀

上面的脚本将会输出下面的HTML代码:NjU中国设计秀

1
2
3
<span class="image-wrap " style="position:relative; display:inline-block; background:url(image.jpg) no-repeat center center; width: 150px; height: 150px;">
	<img src="image.jpg" style="opacity: 0;">
</span>

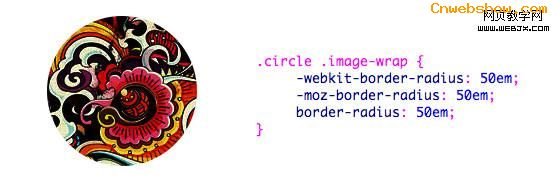

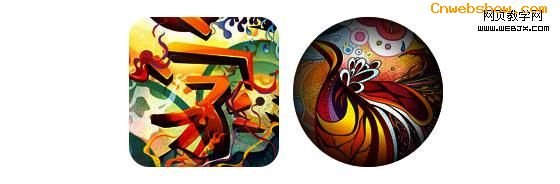

圆形图片(见 demo)NjU中国设计秀

现在,图片被用作背景图了,你可以给它添加任意你想要的样式上去。下面是一个简单的使用border-radius实现的圆形图片。如果你对css3不太了解,可以阅读下Basics of css3,也可以搜索一下前端观察。NjU中国设计秀

circle imageNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
.circle .image-wrap {
	-webkit-border-radius: 50em;
	-moz-border-radius: 50em;
	border-radius: 50em;
}

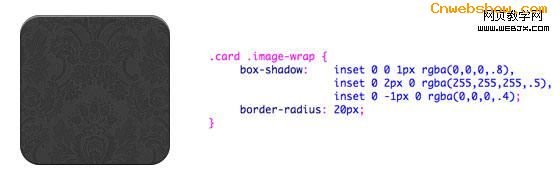

卡片风格(见 demo)NjU中国设计秀

下面是一个像卡片的图片风格,用了多个inset box-shadow。NjU中国设计秀

card styleNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
.card .image-wrap {
	-webkit-box-shadow: inset 0 0 1px rgba(0,0,0,.8), inset 0 2px 0 rgba(255,255,255,.5), inset 0 -1px 0 rgba(0,0,0,.4);
	-moz-box-shadow: inset 0 0 1px rgba(0,0,0,.8), inset 0 2px 0 rgba(255,255,255,.5), inset 0 -1px 0 rgba(0,0,0,.4);
	box-shadow: inset 0 0 1px rgba(0,0,0,.8), inset 0 2px 0 rgba(255,255,255,.5), inset 0 -1px 0 rgba(0,0,0,.4);

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

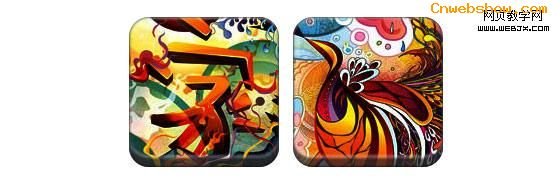

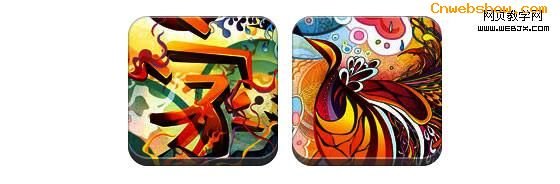

浮雕风格 (见 demo)NjU中国设计秀

通过一点儿改变,我可以将卡片风格转换为浮雕。。。NjU中国设计秀

embossed imageNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
.embossed .image-wrap {
	-webkit-box-shadow: inset 0 0 2px rgba(0,0,0,.8), inset 0 2px 0 rgba(255,255,255,.5), inset 0 -7px 0 rgba(0,0,0,.6), inset 0 -9px 0 rgba(255,255,255,.3);
	-moz-box-shadow: inset 0 0 2px rgba(0,0,0,.8), inset 0 2px 0 rgba(255,255,255,.5), inset 0 -7px 0 rgba(0,0,0,.6), inset 0 -9px 0 rgba(255,255,255,.3);
	box-shadow: inset 0 0 2px rgba(0,0,0,.8), inset 0 2px 0 rgba(255,255,255,.5), inset 0 -7px 0 rgba(0,0,0,.6), inset 0 -9px 0 rgba(255,255,255,.3);

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

软浮雕风格 (见 demo)NjU中国设计秀

和浮雕风格真的很像,我只是加了1px的虚化~~NjU中国设计秀

soft embossedNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
.soft-embossed .image-wrap {
	-webkit-box-shadow: inset 0 0 4px rgba(0,0,0,1), inset 0 2px 1px rgba(255,255,255,.5), inset 0 -9px 2px rgba(0,0,0,.6), inset 0 -12px 2px rgba(255,255,255,.3);
	-moz-box-shadow: inset 0 0 4px rgba(0,0,0,1), inset 0 2px 1px rgba(255,255,255,.5), inset 0 -9px 2px rgba(0,0,0,.6), inset 0 -12px 2px rgba(255,255,255,.3);
	box-shadow: inset 0 0 4px rgba(0,0,0,1), inset 0 2px 1px rgba(255,255,255,.5), inset 0 -9px 2px rgba(0,0,0,.6), inset 0 -12px 2px rgba(255,255,255,.3);

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

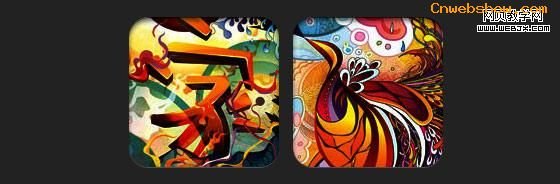

剪贴画风格(见 demo)NjU中国设计秀

同样只是inset box-shadow,我可以让它看起来像剪贴画。NjU中国设计秀

cutout effectNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
.cut-out .image-wrap {
	-webkit-box-shadow: 0 1px 0 rgba(255,255,255,.2), inset 0 4px 5px rgba(0,0,0,.6), inset 0 1px 0 rgba(0,0,0,.6);
	-moz-box-shadow: 0 1px 0 rgba(255,255,255,.2), inset 0 4px 5px rgba(0,0,0,.6), inset 0 1px 0 rgba(0,0,0,.6);
	box-shadow: 0 1px 0 rgba(255,255,255,.2), inset 0 4px 5px rgba(0,0,0,.6), inset 0 1px 0 rgba(0,0,0,.6);

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

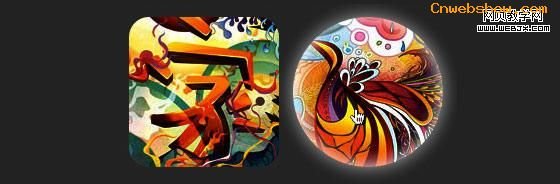

变形和发光 (见 demo)NjU中国设计秀

这个例子中,我为图片外容器增加了变形。mouseover的时候,它将从圆角形状变为圆形,然后增加了发光效果。发光效果通过多重box-shadow实现。NjU中国设计秀

morphing glowingNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
.morphing-glowing .image-wrap {
	-webkit-transition: 1s;
	-moz-transition: 1s;
	transition: 1s;

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

.morphing-glowing .image-wrap:hover {
	-webkit-box-shadow: 0 0 20px rgba(255,255,255,.6), inset 0 0 20px rgba(255,255,255,1);
	-moz-box-shadow: 0 0 20px rgba(255,255,255,.6), inset 0 0 20px rgba(255,255,255,1);
	box-shadow: 0 0 20px rgba(255,255,255,.6), inset 0 0 20px rgba(255,255,255,1);

	-webkit-border-radius: 60em;
	-moz-border-radius: 60em;
	border-radius: 60em;
}

发光遮罩 (见 demo)NjU中国设计秀

发光渐变遮罩是通过:after伪元素实现的。。。NjU中国设计秀

glossy overlayNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
.glossy .image-wrap {
	-webkit-box-shadow: inset 0 -1px 0 rgba(0,0,0,.5);
	-moz-box-shadow: inset 0 -1px 0 rgba(0,0,0,.5);
	box-shadow: inset 0 -1px 0 rgba(0,0,0,.5);

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

.glossy .image-wrap:after {
	position: absolute;
	content: ' ';
	width: 100%;
	height: 50%;
	top: 0;
	left: 0;

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;

	background: -moz-linear-gradient(top, rgba(255,255,255,0.7) 0%, rgba(255,255,255,.1) 100%);
	background: -webkit-gradient(linear, left top, left bottom, color-stop(0%,rgba(255,255,255,0.7)), color-stop(100%,rgba(255,255,255,.1)));
	background: linear-gradient(top, rgba(255,255,255,0.7) 0%,rgba(255,255,255,.1) 100%);
}

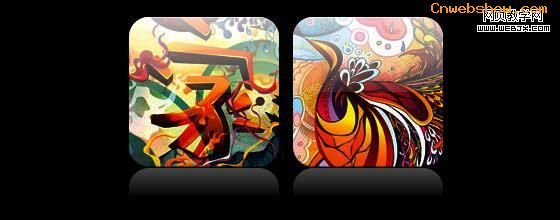

倒影 (见 demo)NjU中国设计秀

这个例子中,我将遮罩渐变移动到底部,于是它就成了倒影。。。NjU中国设计秀

reflectionNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
.reflection .image-wrap:after {
	position: absolute;
	content: ' ';
	width: 100%;
	height: 30px;
	bottom: -31px;
	left: 0;

	-webkit-border-top-left-radius: 20px;
	-webkit-border-top-right-radius: 20px;
	-moz-border-radius-topleft: 20px;
	-moz-border-radius-topright: 20px;
	border-top-left-radius: 20px;
	border-top-right-radius: 20px;

	background: -moz-linear-gradient(top, rgba(0,0,0,.3) 0%, rgba(255,255,255,0) 100%);
	background: -webkit-gradient(linear, left top, left bottom, color-stop(0%,rgba(0,0,0,.3)), color-stop(100%,rgba(255,255,255,0)));
	background: linear-gradient(top, rgba(0,0,0,.3) 0%,rgba(255,255,255,0) 100%);
}

.reflection .image-wrap:hover {
	position: relative;
	top: -8px;
}

光泽和倒影(见 demo)NjU中国设计秀

这个例子中,我同时使用了:before和:after伪元素来实现带倒影的光泽效果。NjU中国设计秀

glossy + reflectionNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
.glossy-reflection .image-wrap {
	-webkit-box-shadow: inset 0 -1px 0 rgba(0,0,0,.5), inset 0 1px 0 rgba(255,255,255,.6);
	-moz-box-shadow: inset 0 -1px 0 rgba(0,0,0,.5), inset 0 1px 0 rgba(255,255,255,.6);
	box-shadow: inset 0 -1px 0 rgba(0,0,0,.5), inset 0 1px 0 rgba(255,255,255,.6);

	-webkit-transition: 1s;
	-moz-transition: 1s;
	transition: 1s;

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

.glossy-reflection .image-wrap:before {
	position: absolute;
	content: ' ';
	width: 100%;
	height: 50%;
	top: 0;
	left: 0;

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;

	background: -moz-linear-gradient(top, rgba(255,255,255,0.7) 0%, rgba(255,255,255,.1) 100%);
	background: -webkit-gradient(linear, left top, left bottom, color-stop(0%,rgba(255,255,255,0.7)), color-stop(100%,rgba(255,255,255,.1)));
	background: linear-gradient(top, rgba(255,255,255,0.7) 0%,rgba(255,255,255,.1) 100%);
}

.glossy-reflection .image-wrap:after {
	position: absolute;
	content: ' ';
	width: 100%;
	height: 30px;
	bottom: -31px;
	left: 0;

	-webkit-border-top-left-radius: 20px;
	-webkit-border-top-right-radius: 20px;
	-moz-border-radius-topleft: 20px;
	-moz-border-radius-topright: 20px;
	border-top-left-radius: 20px;
	border-top-right-radius: 20px;

	background: -moz-linear-gradient(top, rgba(230,230,230,.3) 0%, rgba(230,230,230,0) 100%);
	background: -webkit-gradient(linear, left top, left bottom, color-stop(0%,rgba(230,230,230,.3)), color-stop(100%,rgba(230,230,230,0)));
	background: linear-gradient(top, rgba(230,230,230,.3) 0%,rgba(230,230,230,0) 100%);
}

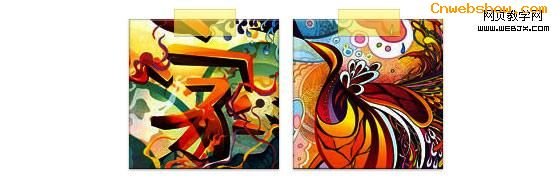

胶带风格(见 demo)NjU中国设计秀

这里使用了:after伪元素来在图片顶部实现了胶带风格的渐变。NjU中国设计秀

tape styleNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
.tape .image-wrap {
	-webkit-box-shadow: inset 0 0 2px rgba(0,0,0,.7), inset 0 2px 0 rgba(255,255,255,.3), inset 0 -1px 0 rgba(0,0,0,.5), 0 1px 3px rgba(0,0,0,.4);
	-moz-box-shadow: inset 0 0 2px rgba(0,0,0,.7), inset 0 2px 0 rgba(255,255,255,.3), inset 0 -1px 0 rgba(0,0,0,.5), 0 1px 3px rgba(0,0,0,.4);
	box-shadow: inset 0 0 2px rgba(0,0,0,.7), inset 0 2px 0 rgba(255,255,255,.3), inset 0 -1px 0 rgba(0,0,0,.5), 0 1px 3px rgba(0,0,0,.4);
}

.tape .image-wrap:after {
	position: absolute;
	content: ' ';
	width: 60px;
	height: 25px;
	top: -10px;
	left: 50%;
	margin-left: -30px;
	border: solid 1px rgba(137,130,48,.2);

	background: -moz-linear-gradient(top, rgba(254,243,127,.6) 0%, rgba(240,224,54,.6) 100%);
	background: -webkit-gradient(linear, left top, left bottom, color-stop(0%,rgba(254,243,127,.6)), color-stop(100%,rgba(240,224,54,.6)));
	background: linear-gradient(top, rgba(254,243,127,.6) 0%,rgba(240,224,54,.6) 100%);
	-webkit-box-shadow: inset 0 1px 0 rgba(255,255,255,.3), 0 1px 0 rgba(0,0,0,.2);
}

变形和着色 (见 demo)NjU中国设计秀

在下面的这个例子中,我用了 :after元素来在mouseover的时候添加发光渐变。NjU中国设计秀

morphing + tintingNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
.morphing-tinting .image-wrap {
	position: relative;

	-webkit-transition: 1s;
	-moz-transition: 1s;
	transition: 1s;

	-webkit-border-radius: 20px;
	-moz-border-radius: 20px;
	border-radius: 20px;
}

.morphing-tinting .image-wrap:hover {
	-webkit-border-radius: 30em;
	-moz-border-radius: 30em;
	border-radius: 30em;
}

.morphing-tinting .image-wrap:after {
	position: absolute;
	content: ' ';
	width: 100%;
	height: 100%;
	top: 0;
	left: 0;

	-webkit-transition: 1s;
	-moz-transition: 1s;
	transition: 1s;

	-webkit-border-radius: 30em;
	-moz-border-radius: 30em;
	border-radius: 30em;
}
.morphing-tinting .image-wrap:hover:after  {
	background: -webkit-gradient(radial, 50% 50%, 40, 50% 50%, 80, from(rgba(0,0,0,0)), to(rgba(0,0,0,1)));
	background: -moz-radial-gradient(50% 50%, circle, rgba(0,0,0,0) 40px, rgba(0,0,0,1) 80px);
}

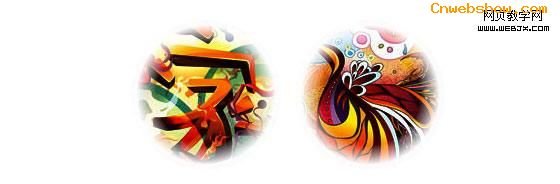

羽化边缘的圆形(见demo)NjU中国设计秀

发散渐变也可以用作遮罩层来实现圆形羽化效果。NjU中国设计秀

feather circleNjU中国设计秀

cssNjU中国设计秀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
.feather .image-wrap {
	position: relative;

	-webkit-border-radius: 30em;
	-moz-border-radius: 30em;
	border-radius: 30em;
}

.feather .image-wrap:after  {
	position: absolute;
	content: ' ';
	width: 100%;
	height: 100%;
	top: 0;
	left: 0;

	background: -webkit-gradient(radial, 50% 50%, 50, 50% 50%, 70, from(rgba(255,255,255,0)), to(rgba(255,255,255,1)));
	background: -moz-radial-gradient(50% 50%, circle, rgba(255,255,255,0) 50px, rgba(255,255,255,1) 70px);
}

浏览器支持NjU中国设计秀

本文的方法可以在支持border-radius、box-shadow、:before和:after伪元素的浏览器上,比如Chrome/Safari/Firefox等,而在一些落后的浏览器比如IE9(包括IE9)则不能完全支持——IE6/7/8没有任何表现,IE9会有普通的圆角。NjU中国设计秀

发挥你的创造力NjU中国设计秀

正如你看到的,你几乎可以使用:before和:after伪元素实现任何效果。如果你有用css3实现更多的创意图片效果,欢迎通过评论与大家分享。NjU中国设计秀

PS,本文中使用:before/:after来实现伪元素,其实我更建议使用双冒号来实现,虽然单冒号有更多的浏览器支持,但是对于这些css3实现的效果来说,双冒号更安全一些。NjU中国设计秀
